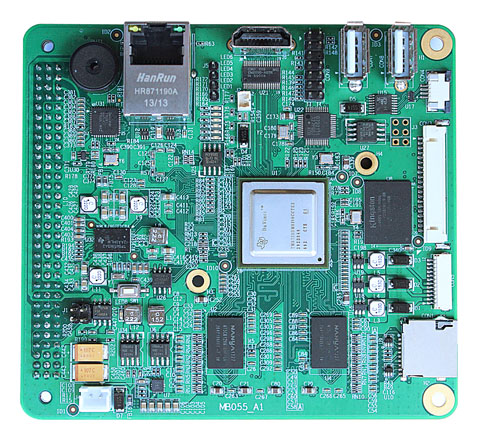

LS8148模塊

產品簡介

基于TI DaVinci™多媒體處理器DM8148，ARM+DSP 架構，支持LVDS、HDMI 顯示輸出。適用于工業級的應用，如數控機床控制，數控系統人機界面，工業級主控板等。

基于TI 公司DaVinci™ 多媒體處理器DM8148, ARM® Cortex™ -A8主頻1GHz，浮點DSP C674xTM主頻750MHz；POWERVR SGXTM 2D/3D圖形硬件加速處理引擎

硬件規格
CPU	TI DM8148	1GHz ARM Cortex™-A8 Core 750MHz TMS320C674x+ DSP POWERVR SG™ 2D/3D Graphics Engine Programmable High-Definition Video Image Coprocessing (HDVICP v2) Engine
RAM	1GByte DDR3 32-bit 800MHz
FLASH	SPI FLASH	4MByte
	eMMC FLASH	4MByte
Display	Resolution	Single: 1920X1200 @ 30fps Dual: 1280X1024 @ 24fps
	Display Data Control	High Performance GPU Integrated, 3D Graphics Engine
I/O Physical	Video	1 x DVI-I
	Audio	1 x 3.5mm Stereo Audio Phone
		1 x Built-in Stereo Audio Phone
	UART	1 x Built-in Stereo Audio Phone
	USB(1.0/2.0)	4 x 3.3V TTL UART ( 4 Lines )
Network	LAN	1 x 10/100/1000M Ethernet , RJ45 , Support WOL
	WLAN	1 x USB WIFI Module Interface ( pin-socket )
Encrypt	1 x I2C Interface Encrypt Module
RTC	1 x RTC Battery Socket
Button	1 x Power Button
	1 x Reset Button
	1 x Revert Button
LED	1 x Power Indicator
Power	1 x 5V 2A DC Power Connector
Boot Mode Select	Jumper
Buzzer	1 x Boot Indicator Buzzer
Dimension	150mm (L)x 133mm (W)
Temperature	Operation	0°to 70°C
	Storage	-40°to 85°C

軟件規格
Linux	Uboot Version	u-boot-2010.06
	Kernel Version	Linux-2.6.37
	OS	Ubuntu 11.04
	Configuration And service	ifconfig , route etc.
	Basic Tools	cat,chmod,echo,free,init,kill,ls,mkdir,mount,ps,reboot,rm,lsmod,rmmod etc.
	Device Driver	Provide relate device drive and source code
	Lib	DSP Lib，GTK,X11,OpenGL etc.
