主要特點: l 200萬1/4"CMOS傳感器 l 720P,25幀/秒 的實時視頻
l H.264 視頻壓縮
l 30顆LED紅外燈，夜視距離20米
l 防爆，無線（可選）
l 支持 ONVIF 2.0
|
|

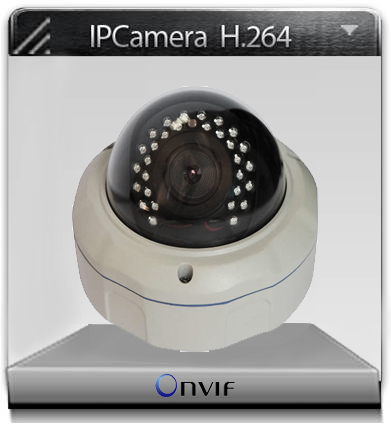

Model
|
SG301HD
|
|
|
Camera
|
CPU
|
Hi3507
|
|
OS
|
Embedded Linux
|
|
|
Image sensor
|
1/3" CMOS Sensor, 2.0MP resolution
|
|
|
Shutter
|
1/25s ~1/100,000s
|
|
|
Lens Mount
|
C/CS
|
|
|
Day & Night
|
Support
|
|
|
IR
|
30 IR LEDs , up to 25 meters IR distance
|
|
|
Compression Standard
|
Video Compression
|
H.264/MJPEG
|
|
Bit rate
|
32 Kbps~16Mbps
|
|
|
Audio compression
|
G.711
|
|
|
Multi-stream
|
Support secondary stream: CIF
|
|
|
Interface
|
Web interface(support English), support for multi-user access
|
|
|
|
Maximum Video
Resolution
|
1280*720
|
|
Frame/second
|
25 frames / second (PAL); 30 frames / second (NTSC)
|
|
|
Image Settings
|
Saturation, Brightness, Contrast adjustable through client software or web browser
|
|
|
Network
|
SD card storage
|
Support motion detection storage
|
|
Protocols
|
TCP/IP,HTTP,ARP,RARP,ICMP,DHCP,DNS,DDNS,PPPOE,FTP,SMTP,RTP/RTSP,NTP
|
|
|
Basic
|
Reset button, Anti-flicker, Dual Stream, Heartbeat, Password Protection, watermark
|
|
|
Interface
|
Audio
|
One channel input interface, one channel line-level output (optional)
|
|
Communication interface
|
Ethernet Internet RJ45 port, Audio input/output, Alarm input/output, SD card(optional)
|
|
|
Serial interface
|
One RS485
|
|
|
Linkage alarm interface
|
One alarm in and out interface
|
|
|
General
|
Motion detection
|
Support
|
|
Operation temperature
|
Temperature: -10 degrees to 60 degrees;
Humidity: 10% to 95%, non condensing
|
|
|
Power Supply
|
DC input(12V/1.5A)
|
|
|
Consumption
|
<3W
|
|
|
Size
|
24*13.5*13CM
|
|
